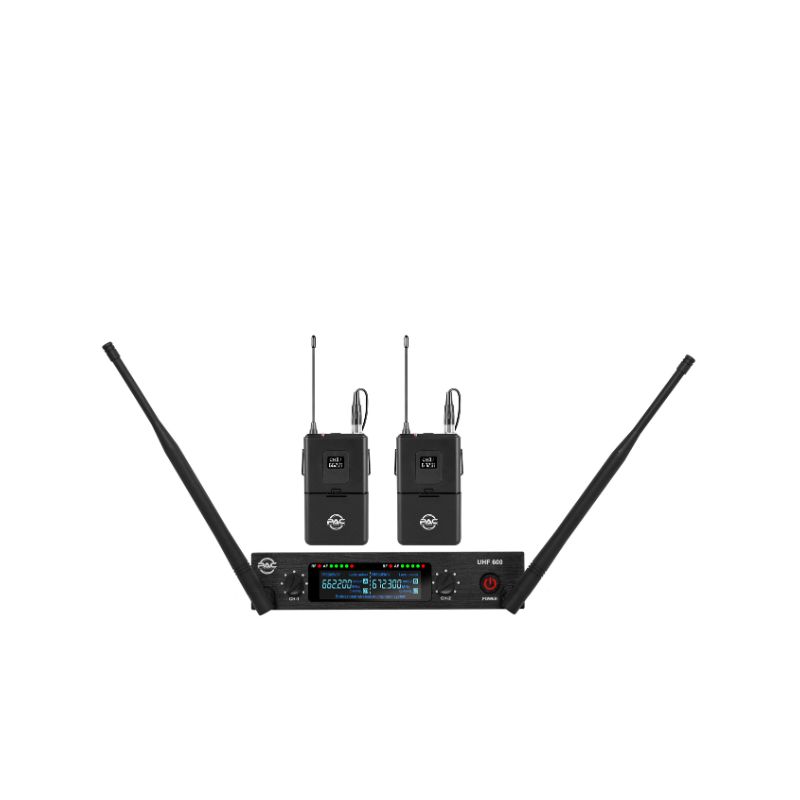

The UHF600 Dual Wireless Lapel System offers the same reliable UHF 520–930 MHz platform as the UHF400 but comes with bodypack transmitters and lapel/headset microphones for hands-free operation. Designed for speech, presentations, and performers who need mobility with clarity.
🔧 System Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | UHF 520 – 930 MHz |
| Frequency Stability | ±0.005 % |
| Dynamic Range | > 110 dB |
| Frequency Response | 60 Hz – 18 kHz (±3 dB) |
📡 Receiver Specifications
| Parameter | Specification |
|---|---|
| Wireless Interface | BNC / 50 Ω × 2 |
| Sensitivity | 12 dB (80 dB S/N) |
| Spur Suppression | > 80 dB |
| Power Supply | DC 11–16 V (rated 12 V) |
🎤 Transmitter Specifications
| Parameter | Specification |
|---|---|
| Transmitter Type | Bodypack with Lavalier / Headset Mic |
| Output Power | 10 mW |
| S/N Ratio | > 105 dB |
| T.H.D | ≤ 0.5 % |
| Power Supply | 2 × 1.5 V AA batteries |
| Battery Life | ≤ 10 hours |
📦 In the Box
-
Receiver Unit
-
2× Bodypack Transmitters
-
2× Lapel or Headset Microphones
-
2× Detachable Antennas
-
Power Adapter
-
User Manual
💡 Key Features
✅ Dual-channel UHF system (520–930 MHz)
✅ Hands-free lapel or headset operation
✅ High S/N ratio > 105 dB for crystal-clear sound
✅ Metal receiver chassis for durability
✅ 10-hour continuous use with AA batteries
✅ Ideal for conferences, worship, and live events
